Main Model

HTCS-II

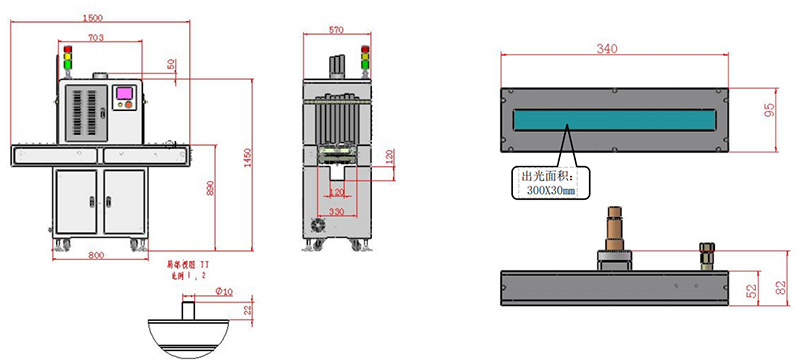

UV machine external dimensions

L1750mm*W570mm*H1530mm

Lighting area

300mm*30mm*2

Wavelength

395nm

Optical power density

 12W/cm2

Lamp bead brand

Seoul, Korea

Lamp Bead Life

≥20000H

Heat Dissipation

water cooling

Control mode

PLC+HNI

Parameter setting

Touch screen operation

Power Adjustment

Digital dimming （1-100%）

Speed Setting

0-10m/min

Power supply voltage

AC220V (50HZ)

Power consumption

≤3.5KW

Net weight

200KG

Ambient temperature and humidity

Ambient temperature: -20℃-40℃ Relative humidity: 25%-80%RH

Warranty time

1year
